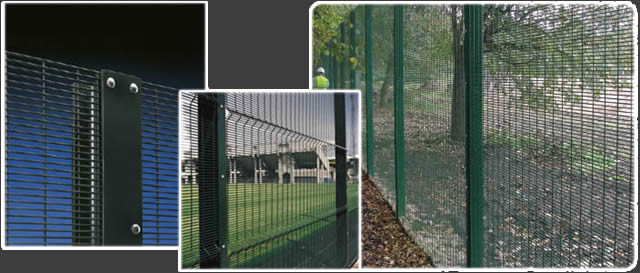

358 Security Fencing
358 Security Fence is also known as” Prison Mesh”. It is a special fencing panel we can make in our city, this production offers the best vale for performance, durability and appearance. ‘358’ comes from its measurements 3’’ x 0.5’’x8 gauge which equates to approx. 76.2mmx12.7mmx4mm in metric.
It is a professional structure designed for high security environments , combined with an steel framework, coated with heavily zinc or RAL color powder painting.
Specifications
1/2" x 3" x 8gauge,1" x 3" x 8gauge.Panel size from 2m to 4m.finishs by hot dipped galvanized or powder coated after gal.any color available.
358 fence Benefits:
Secure and discreet
A superior system for providing security where a discreet visual impact on the immediate environment is essential.
Vandal resistant
The finger proof aperture combined with 4mm wire diameter provides a barrier that is difficult to climb or penetrate. Almost impossible to cut wires by use of conventional bolt or wire cutters.
Efficient deterrence
An effective deterrent to intruders available in various heights up to 6m. Compatible with electronic detection and alarm systems.
Good viewing visibility
In spite of the small mesh aperture the see-through characteristics remain unimpaired when viewed head-on and even at an angle to the fence. This is particularly important for clear camera surveillance.
Durability
The high quality advanced coating technology guarantees an extended product life span and low maintenance.
Installation
The panels are produced at 3.050 m, reducing the amount of posts needed by 20%. Installation time is thus reduced.
Weld Strength
The superior welding technique and process control create a stronger fusion between the wires.
Complete system
Supplied as a complete system with panels, posts and gates - stepped panels available to suit sloping sites.
Panels |
Posts |
||||
Fence |
Panel Size |
section |
O/A Length |
Total number of fixings |
|
height |
Height/Width |
Inters- 1 Clamp bar |
Corners- 2 Clamp bars |
||
m |
mm |
||||
2.0 |
2007 x 2515 |
60x60x2.5mm |
2700 |
7 |
14 |
2.4 |
2400 x 2515 |
60x60x2.5mm |
3100 |
9 |
18 |
3.0 |
2997 x 2515 |
80x80x2.5mm |
3800 |
11 |
22 |
3.3 |
3302 x 2515 |
80x80x2.5mm |
4200 |
12 |
24 |
3.6 |
3607 x 2515 |
100x60x3mm |
4500 |
13 |
|
3.6 |
3607 x 2515 |
100x100x3mm |
4500 |
26 |
